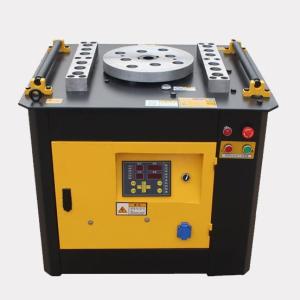

CNC Steel Iron Bending Machine Price Rod Rebar Bender

QIFU Machinery Co., Ltd
Contact Now

CNC Steel Iron Bending Machine Price Rod Rebar Bender

Brand Name : Qifu

Model Number : GW40 GW45 GW50

Place of Origin : Chongqing, China

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 10,000 units per month

Delivery Time : 7-30 days

Packaging Details : wooden cases

Certification : CE

Video inspection : provide

Mechanical test report : Provide

Core component warranty : 1 year

Core component : engine

Material/Metal Processing : Carbon Steel

Automation : semi-automatic

Applicable industry : construction engineering

Warranty service : video technical support, online support

Name : CNC Steel Iron Bending Machine Price Rod Rebar Bender

Keywords : Rod Rebar Bender

Contact Now

CNC Steel Iron Bending Machine Price Rod Rebar Bender


Description:
A new type of gear reducer, big gear, pinion and curved disk is used. The two-stage brake motor is directly connected with the reducer to reduce the speed. The pinion meshes with the big gear to reduce the speed.
The big gear always drives the curved disk to rotate. The curved disk is equipped with a central shaft hole and several curved shaft holes; and the positioning bar on the working table is equipped with a central shaft hole and a number of curved shaft holes.
Several positioning axle holes are respectively arranged. The ratio of input and output rotations is accurate, the bending speed is stable and accurate, and the speed can be changed automatically by electric control. The brake can ensure the bending angle.
Two-way bending of reinforcing bars is carried out by using the positive and negative rotation of the motor. The center axle can be replaced and repaired easily. Intelligent control can be adopted.

Advantage:

· Widely used in construction industry and rebar manufacturing enterprise;

· High efficiency and accurate processing precision


Why choose us:
1. Excellent quality, user-friendly design, factory direct price, professional after-sales service.
2. Best-selling in North America, Europe, Africa and other parts of the world.
3. Industry with relevant work experience in construction machinery

product name Steel bending machine
Origin Chongqing, China
Motor power (kW) 3KW/4KW
Voltage 380V, customized
Material / Metal Processed:
Carbon steel
Bending range 6-50mm
Applicable Industries: Energy & Mining, Manufacturing Plant
Bending materials round steel, steel bars


CNC Steel Iron Bending Machine Price Rod Rebar Bender

Model Motor power Motor speed Bending diameter Voltage Bending speed Bending angle Weight Dimension
(mm)
round bar rebar
GW40 3KW 1440r/min 6-32mm 6-28mm 110V/
220V/
380V/
415V/
customized
18-20r/min
adjustable
0-180° 240kgs 820x760x720
GW40A
(auto/CNC)
3KW 6-32mm 6-28mm 240kgs 820x760x720
GW45
(auto/CNC)
3KW 6-36mm 6-32mm 320kgs 870x760x720
GW50
(auto/CNC)
4KW 6-50mm 6-40mm 360kgs 980x760x740

CNC Steel Iron Bending Machine Price Rod Rebar Bender
